MIL-STD-QUALITY SHORTWAVE NEAR-INFRARED OBJECTIVES  SWIR objectives designed to operate under harish environmental conditions, providing a high image quality. | ||
SWIRO-14-1/8 | ||||
 | ||||
PARAMETER | UNIT | DATA | ||
| Focal length | mm | 14 | ||
| F/# | - | 1.8 | ||

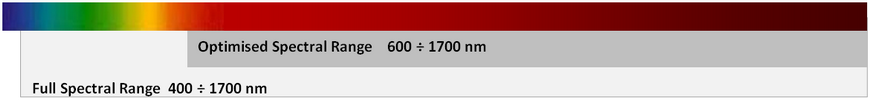

| Spectral range | nm | 600-1700 | ||
| Temperature range | °C | -40 / +65 | ||
| FoV 1 | ° | 48 | ||
| Image diagonal | mm | 12.3 | ||
| Distorsion 2 | % | max 2.5 | ||
| Transmission | % | up to 90 | ||
| Focusing 3 | - | manual | ||
Mount | - | C-mount | ||
Dimensions | mm | F28x32.5 | ||
| Weight 4 | g | 47 | ||
1 diagonal, with 640x512 / 15um sensor 2 at the FoV edge 3 with fixing screws 4 with C-mount ring | ||||
SWIRO-25-1/5 | ||||
 | ||||
PARAMETER | UNIT | DATA | ||
| Focal length | mm | 25 | ||
| F/# | - | 1.8 | ||
| Spectral range | nm | 600-1700 | ||
| Temperature range | °C | -40 / +65 | ||
| FoV 1 | ° | 36.3 | ||
| Image diagonal | mm | 16.4 | ||
| Distorsion 2 | % | < 0.2 | ||
| Transmission | % | > 85 | ||
| Focusing 3 | - | manual | ||
Mount | - | C-mount | ||
Dimensions | mm | F32x43.5 | ||
| Weight 4 | g | 92 | ||
1 diagonal, with 640x512 / 20um sensor 2 at the FoV edge 3 with fixing screws 4 with C-mount ring | ||||
SWIRO-50-1/5 | ||||
 | ||||
PARAMETER | UNIT | DATA | ||
| Focal length | mm | 50 | ||
| F/# | - | 1.5 | ||
| Spectral range | nm | 400-1700 | ||
| Temperature range | °C | -40 / +65 | ||
| FoV 1 | ° | 18.6 | ||
| Image diagonal | mm | 16.4 | ||
| Distorsion 2 | % | < 0.2 | ||
| Transmission | % | > 85 | ||
| Focusing 3 | - | manual | ||
Mount | - | C-mount | ||
Dimensions | mm | F54 x 89 | ||
| Weight 4 | g | 318 | ||
1 diagonal, with 640x512 / 20um sensor 2 at the FoV edge 3 with fixing screws 4 with C-mount ring | ||||
SWIRO-100-1/5 | ||||
 | ||||
PARAMETER | UNIT | DATA | ||
| Focal length | mm | 100 | ||
| F/# | - | 1.5 | ||
| Spectral range | nm | 600-1700 | ||
| Temperature range | °C | -40 / +65 | ||
| FoV 1 | ° | 7.1 | ||
| Image diagonal | mm | 12.3 | ||
| Distorsion 2 | % | < 0.15 | ||
| Transmission | % | > 90 | ||
| Focusing 3 | - | manual | ||
Mount | - | C-mount | ||
Dimensions | mm | F84x126 | ||
| Weight 4 | kg | 1.0 | ||
1 diagonal, with 640x512 / 15um sensor 2 at the FoV edge 3 with fixing screws 4 with C-mount ring | ||||
Picture obtained by means of SWIRO-14-1/8  City nightime conditions | ||
Picture taken with SWIRO 25-1/5  Dark nightime conditions | ||
Picture taken with SWIRO-50-1/5  Dusk conditions, distance to the observed area 4 km | ||
Picture obtained by means of SWIRO 100-1/5  Dark nightime conditions | ||
